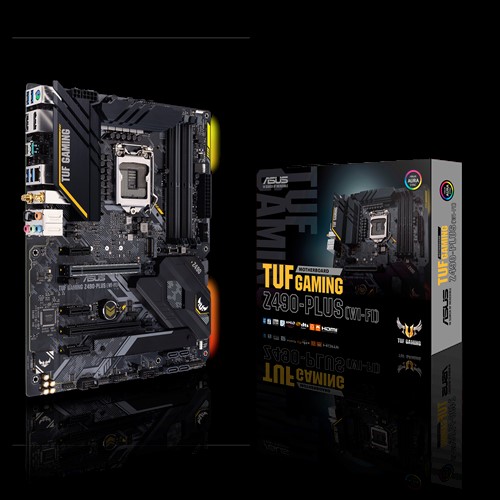

MB ASUS TUF Z490-PLUS GAMING (WI-Fi) (1200)

Descrizione

Scheda madre Intel® Z490 (LGA 1200) ATX gaming con M.2, 14 stadi di potenza DrMOS, Intel® WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, porte USB 3.2 Gen 2, supporto Thunderbolt™ 3 e illuminazione RGB Aura Sync

Formato: ATX

• Chipset: Intel Z490
  Socket: 1200 per CPU Intel di 10a generazione
• RAM:
  4x DDR4 (2.933 MHz, fino a 4.600 MHz con OC)
  Dual-Channel
  Max. 128 GB
• Slot:
  2x PCIe 3.0 x16 (x16, x4)
  3x PCIe 3.0 x1
  1x M.2 Key E (verticale, per modulo WLAN/BT)
• Connessione Dati:
  Intel I219V Gb Ethernet
  WiFi-/Bluetooth – Intel Wi-Fi 6 AX201
• Connessioni Interne:
  6x SATA 6G
  2x M.2 (2x PCIe 3.0 x4/SATA; 2242 / 2260 / 2280 / 1x 22110)
  1x USB 3.1/USB 3.2 Gen2
  2x USB 3.0/USB 3.2 Gen1
  2x USB 2.0
  1x USB 2.0
  1x CPU-Fan-Header (4-Pin)
  1x CPU-OPT-Fan-Header (4-Pin)
  3x Fan-Header (4-Pin)
  1x AiO-Pumpen-Header
  1x Clear-CMOS-Header
  1x COM-Port-Header
  1x Thunderbolt-Header
  1x Chassis-Intrusion
  1x Front Panel Audio Connector
  1x AURA Addressable Gen 2 header
  2x AURA RGB Header
• Connessioni Esterne:
  1x PS/2 Keyboard/Mouse
  1x USB 3.1/USB 3.2 Gen2 (Typ C)
  1x USB 3.1/USB 3.2 Gen2 (Typ A)
  4x USB 3.0/USB 3.2 Gen1
  1x DisplayPort 1.4
  1x HDMI 1.4b
  1x Gigabit-LAN (Intel I219V)
  1x WiFi-/Bluetooth-Modul (Intel Wi-Fi 6 AX201)
  1x S/PDIF
  5x Audio (Realtek ALC S1220A)
• Alimentazione:
  1× 24-Pin ATX 12V
  1× 8-Pin ATX 12V
  1× 4-Pin ATX 12V
