Descrizione
Type
Series

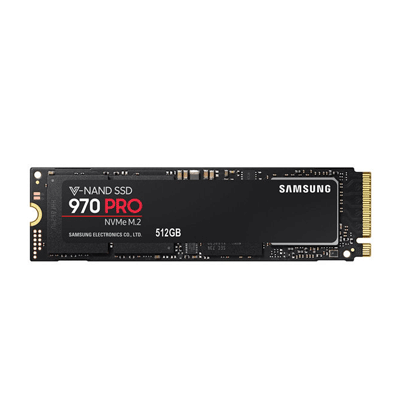

SSD 970 PRO
Usage Application
Client PCs
Interface
PCIe Gen 3.0 x4, NVMe 1.3
Storage
Capacity
512GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features
Sequential Read Speed
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 2,300 MB/s * Performance may vary based on system hardware & configuration
Random Read Speed
Random Read (4KB, QD32): Up to
370,000 IOPS Random Read
Random Read (4KB, QD1): Up to
15,000 IOPS Random Read
*Performance may vary based on system hardware & configuration
Random Write Speed
Random Write (4KB, QD32): Up to
500,000 IOPS Random Write
Random Write (4KB, QD1): Up to
55,000 IOPS Random Write
* Performance may vary based on system hardware & configuration
Controller
Samsung Phoenix Controller
NAND Flash
Samsung V-NAND 2-bit MLC
Trim Support
Supported
AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Device Sleep Mode Support
Yes
Internal Storage
Yes
Temperature proof
Yes
NVMe
Yes
Gaming SSDs
Yes
General
Average Power Consumption (system level)
*Average: 5.2 W
*Maximum: 8.5 W (Burst mode)
*Actual power consumption may
vary depending on system
hardware & configuration
Power consumption (Idle)
Max. 30 mW
*Actual power consumption may
vary depending on system
hardware & configuration
Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature
0 – 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Form Factor
Product
M.2 (2280)
Dimensions (W x D x H)
Product
3.16″ x 0.09″ x 0.87″
Weight
Product
Max 0.28oz.
Software
Management SW
Magician Software for SSD management
Warranty
Product
5-Year Limited Warranty or 600 TBW Limited Warranty
