SVGA PNY VCQP4000-PB nVidia QUADRO P4000 PASCAL Low Profile 8GBDDR5 PCIe16X 3.0 2560×1600 4x DP1.4+stereo

Descrizione

Specifications
CUDA Cores: 1792
Peak Single Precision FP32 Performance: 5.3 TFLOPS
Multi-GPU Scalability: NVIDIA SLI HB
GPU Memory: 8 GB GDDR5
Memory Interface: 256-bit
Memory Bandwidth: 243 GB/s
System Interface: PCI Express 3.0 x16
Maximum Power Consumption: 105 W
Energy Star Enabling: Yes
Thermal Solution: Ultra-quiet active fansink
Form Factor: 4.40” H x 9.50” L, Single Slot
Display Connectors: DP 1.4 (4) + Stereo
DisplayPort with Audio: Yes
DVI-D Single-Link Connector: Via included adapter
HDMI Support: Via optional adapters
VGA Support: Via optional adapters
Number of Displays Supported: 4
Maximum DP 1.4 Resolution: HDR 5120 x 2880 at 60Hz (30-bit color)
5K Display Support: HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support: HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution: 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution: 1920 x 1200 at 60Hz via included adapter
HDCP Support: Yes
Professional 3D Support: Yes, via included stereo connector bracket
Quadro Sync II Compatible: Yes (Frame Lock and Genlock)
NVIDIA GPU Direct Compatible: Yes
Graphics APIs: Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs: CUDA, DirectCompute, OpenCL
NVIEW: Yes
NVIDIA MOSAIC: Yes (Windows 10, 8.1, 8, 7, and Linux)
Warranty: 3 Years

Supported Platforms

Microsoft Windows 10 (64- and 32-bit)
Microsoft Windows 8.1 and 8 (64- and 32-bit)
Microsoft Windows 7 (64- and 32-bit)
Microsoft Windows Server 2008 (64- and 32-bit)
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2 64
Microsoft Windows Server 2016
Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64- and 32-bit)

Minimum System Hardware Requirements
Intel Core i5, i7, Xeon or later
AMD Phenom or Opteron-class or later
PCIe x16 Gen 3 (preferred) expansion slot
2 GB or more of system memory, 8 GB recommended
200MB of available disk space for full driver installation
Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort (preferred) or DVI compatible displays
HDMI display(s) with purchase of optional DP to HDMI adapter(s)

3D Graphics Architecture
Scalable geometry architecture
Hardware tessellation engine
NVIDIA GigaThread engine with dual copy engines
Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
Up to 16 K x 16 K texture and render processing
Transparent multisampling and super sampling
16x angle independent anisotropic filtering
32-bit per-component floating point texture filtering and blending
64x full scene antialiasing (FSAA)/128x FSAA in NVIDIA SLI Mode
Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, and VC1
Dedicated H.264 and HEVC encoder
Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance.
NVIDIA CUDA Parallel Processing Architecture
Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
96 KB of RAM (dedicated shared memory per SM)

Advanced Display Features
Support for any combination of four connected displays
Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz)
DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link), and DisplayPort to HDMI cables (resolution support based on dongle specifications)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA NVIEW multi-display technology
Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform, which includes NVIDIA MOSAIC, NVIDIA Sync and NVIDIA Warp/Blend technologies
Turnkey Quadro P4000 + Quadro Sync II bundles available
DisplayPort and HDMI Digital Audio
Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
Word sizes of 16-bit, 20-bit, and 24-bit

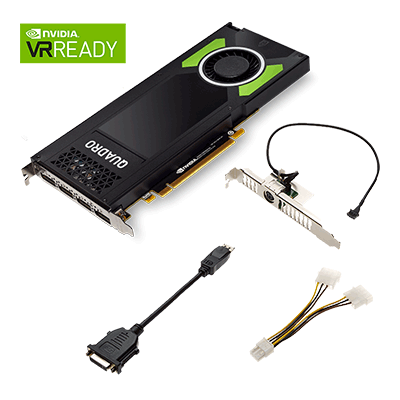

Package Contains
NVIDIA Quadro P4000 professional graphics board
Stereo connector bracket
DisplayPort to DVI-D SL adapter
Auxiliary power cable
Software installation disc for Windows 10, 8.1, 8, and 7 (64- and 32-bit)
Printed Quick Start Guide
